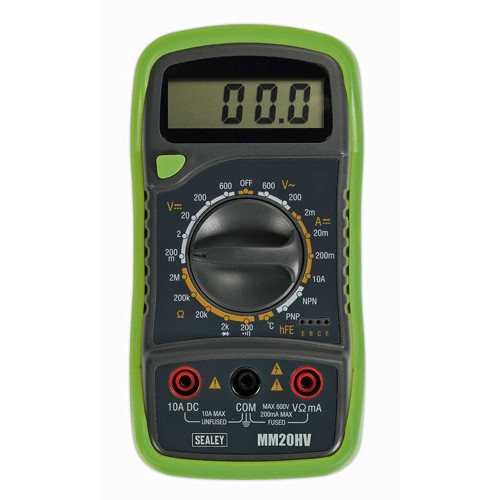

Digital Multimeter 8 Function with Thermocouple HI-Viz

Digital Multimeter 8 Function with Thermocouple HI-VIZ

Unit of Sale: 1

Digital Multimeter 8 Function with Thermocouple HI-Viz

• Heavy-duty general purpose multimeter with clear and easy-to-read LCD display.
• Features data hold function, temperature probe and diode test facility.
• Housed in rugged rubber boot with integral stand.
• Supplied with full set of leads and probes.

Measures:
• AC and DC Voltage
• DC Current
• Resistance
• Temperature
• Audible Continuity
• Diode/Transistor Verification Mode

Detailed Information
Instructions

Model No:	S1MM20HV
Specification:
AC Voltage (Accuracy):	200V, 600V (±2%)
DC Voltage (Accuracy):	200mV (±0.5%), 2V (±0.8%), 20V (±0.8%), 200V (±0.8%), 600V (±0.8%)
AC Current (Accuracy):	No
DC Current (Accuracy):	2mA (±1.0%), 20mA (±1.0%), 200mA (±1.2%), 10A (±2.0%)
Resistance (Accuracy):	200?, 2k?, 20k?, 200k? (±0.8%), 2M? (±1.2%)
Capacitance (Accuracy):	No
Temperature (Accuracy):	Range; -40°C- 1000°C, (±1% up to 400°C), (±2% over 400°C)
Frequency (Accuracy):	No
Duty Cycle:	No
Continuity Audible:	Yes
Diode Test:	Yes
Transistor Test:	Yes
High-Impact Rubber Case:	Yes
Digits x Height:	6 x 12mm
Low Battery Indicator:	Yes
Batteries (Supplied):	1 x 9V
Information:	Integral Stand
Size (L x W x D):	140 x 70 x 35mm
Conformity:	IEC 1010
Weight:	0.332kg

---
